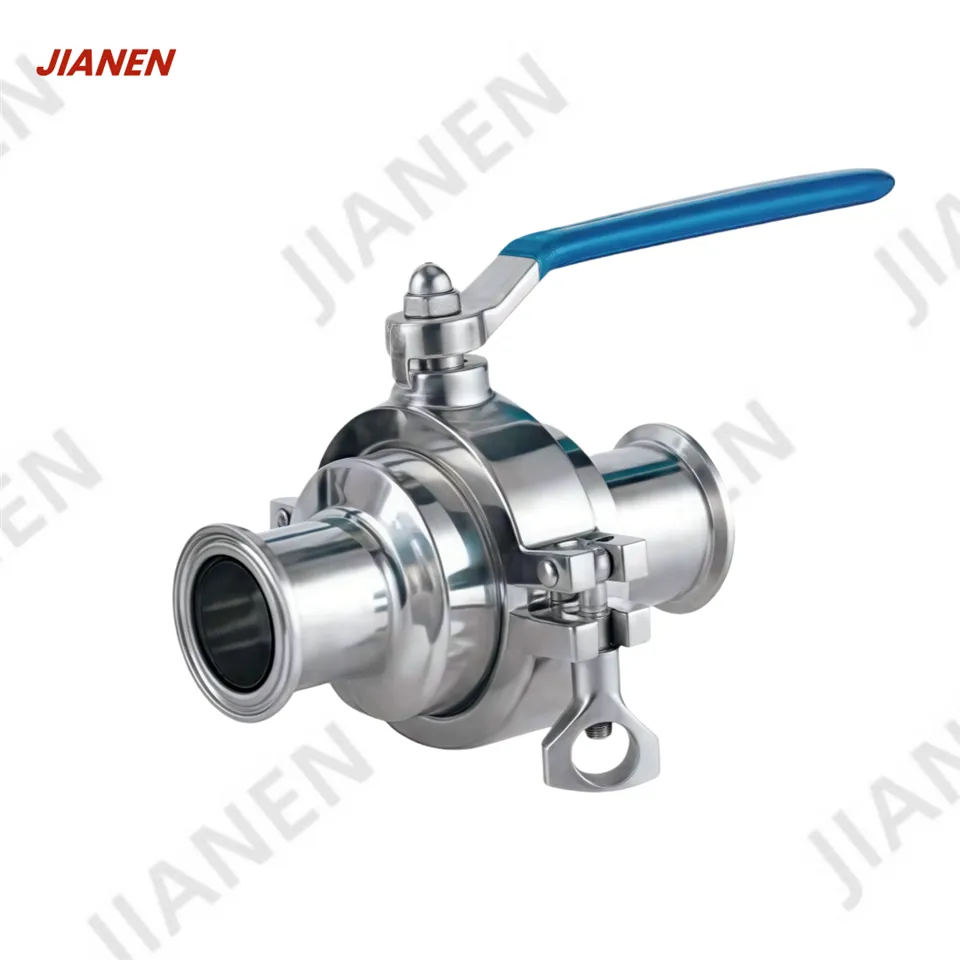

Clamp non-retention ball valve for the all inclusive tee design to solve the ball valve liquid retention valve cavity and the valve used in bio pharmaceutical engineering.
Body combination clamp connection
Without professional tools to remove the valve
Operating torque is small
No matter what kind of connection, the valve can be replacedwithout changing the total length of the valve
| Products name | Sanitary Non-Retention Ball Valve |
| Products material | Stainless Steel 304 or 316L |
| Size | 1"- 4" |
| Standards | DIN.SMS.ISO.IDF.BPE.RJT |
| Gasket Material | EPDM / PTFE or According to customers |
| Working pressure | 1.0MPa(16bar) |
| Working Temperature | - 20 ~ +135°C(EPDM/PTFE) |
| Way of Connection | Flanges, welded, quick-install, internal/external threads |
| Surface | Mirror polished food grade inside and outside |
| Package | Foam bag/shrink bag-carton box-ply woodencase |
Through 90° rotary handle, drive the ball body which have transfixion cavity and precise manufacture, to open or close the valve, reaching control the flow rate of medium.
The constitute elements of ball valve always included: one handle,one ball body with transfixion cavity, valve body, valve central spindle and spindle shaft seal.
1.Valve stem anti-flying design
2.The connection between valve body and bonnet with positioning stage design
3. Circulation
4. No retention desiqn
5.Stem seal packing with compensating device
6. Padlock device
Our Advantages
Wenzhou Jianen is a manufacturer and supplier of sanitary pipe fittings,
offering a wide range of high-precision and high-quality stainless steel sanitary pipes, pipe fittings, valves, sight glasses, pumps and other fluid equipment products,
products in line with the 3A, ISO, DIN, SMS and other standards, trustworthy!
