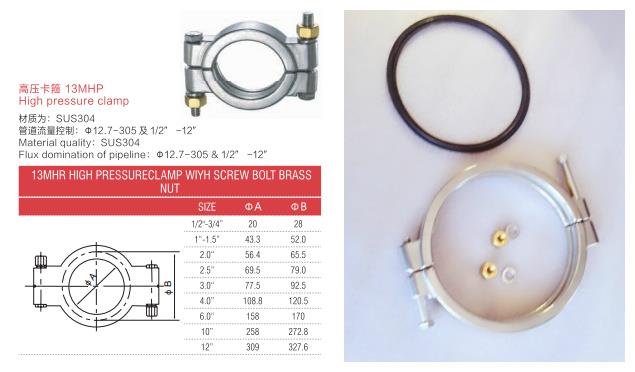

Sanitary 13MHP high pressure clamp is used onfood,beverage,pharmacy,chemical,dairy,cosmetics etc industries.
Sanitary clamp use With a gasket, a clamp can match two ferrules tightly together without any leakage. JiANEN SUPPLY VARIOUS clamps: heavy duty single pin clamp, double pins clamp, high pressure bolted clamps with brass nuts,I-LINE CLAMP, vacuum clamp and safety clamps ,also can customized.
Feature: Tight with brass nut,.
Surface: Normally is Vibration polishing, few customers request polish.
Size: 1/2"-12"
Material: SS304,SS316L etc
Gasket: Silicone, EPDM, PTFE, Buna-N ,vition,etc
An SS U-Bolt Clamp is an important tool for securing pipelines, cables, or other devices. The following is the procedure for using an SS U-Bolt Clamp:
Choose the Right Specification: First, select the corresponding specifications of the SS U-Bolt Clamp according to the diameter and weight of the pipeline or equipment to be fixed. Ensure the selected clamp can fully wrap around the pipe or equipment and provide sufficient securing force.
Prepare the Installation Location: Clean off any dirt and debris from the pipeline or equipment to ensure a clean and smooth installation location. If you need to install it on an uneven surface, you may need to use a pad or adjust the clamp to fit the uneven surface.
Install the U-Bolt Clamp:
Place the U-shaped part of the U-bolt clamp above the pipe or equipment, ensuring that the U-shaped part completely wraps around the pipe or equipment.
Pass the bolts through the sides of the U-shaped section and secure the bolts with nuts.
Use a wrench or screwdriver to gradually tighten the nuts, so that the U-bolt clamp is tightly fixed on the pipe or equipment. Ensure the clamp is securely installed, with no shaking or looseness.
Adjust the Securing Force: Adjust the tightness of the nuts to control the securing force of the clamp as needed. If a stronger securing force is required, tighten the nuts; if a reduced securing force is needed, slightly loosen the nuts.
Check the Installation: After completing the installation, check whether the clamp is firmly installed, with no shaking or looseness. Ensure there are no obvious gaps between the clamp and the pipeline or equipment, and that the U-shaped part of the clamp fully wraps around the pipe or equipment.
Precautions:
During the installation process, ensure not to over-tighten the nuts to avoid damaging the clamp or pipe/equipment.
Regularly check the securing status of the clamp. If there is any looseness or damage, tighten or replace it promptly.
During use, avoid impact or excessive force on the clamp to prevent damage or compromised securing effectiveness.
