tri clamp butterfly valve
Applications:
Butterfly valves, no matter manually or automatically, can be used in most fliud product applications in the food-processing,
phamaceutical and chemical industries.
●Butterfly plate: AISI304/316L(forged)
●Valve body: AISI304/316L(forged)
●Washer and gasket: EPDM which conforms to FDA .
●Handle: AISI 304/PP
●Gasket material:NBR,VMQ,FPM....

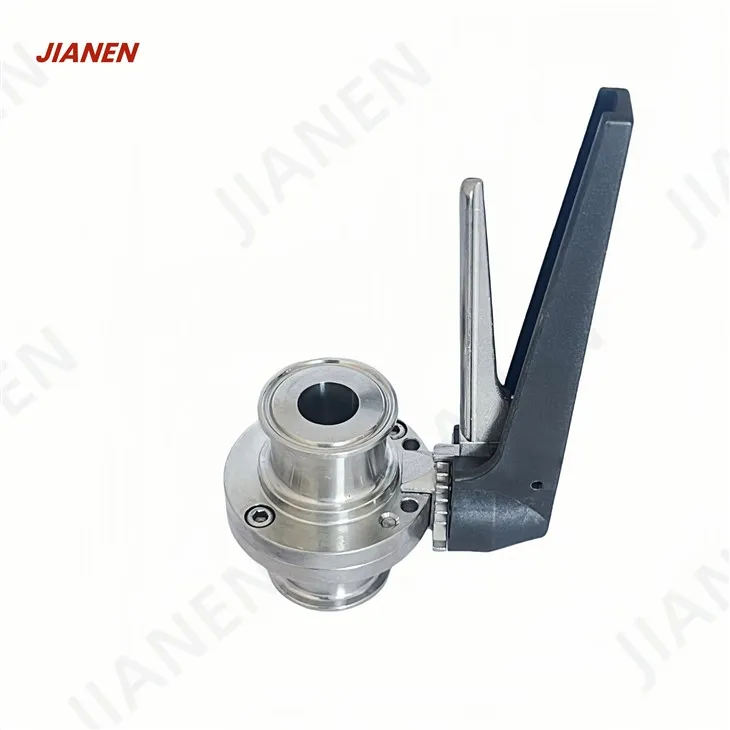

●Handle: two-position handle,three-position handle,four-position handle, multi-position handle
●Actuator:pneumatic stainless steel actuator,pneumatic aluminum actuator,electric actuator
●Control: Position sensor,C-TOP controller, c-top controller
Tri Clamp Butterfly Valve is a valve type commonly used in the food, pharmaceutical, biotechnology, and chemical industries. The following are its main advantages and disadvantages:
Advantages:
Simple installation: The Tri-Clamp connection system allows the valve to be installed quickly and easily onto the pipe, without welding or complex flange connections.
High sealing performance: This valve design typically provides excellent sealing performance, helping to prevent leakage and contamination.
Easy to clean and maintain: The structure allows for easy disassembly and reinstallation, making cleaning and maintenance relatively simple.
Suitable for various media: Tri-Clamp Butterfly Valves are suitable for handling various fluid media, including high purity or corrosive media.
Flexible operation: The disc design of the butterfly valve enables quick opening and closing and provides smooth operation.
Disadvantages:
Pressure limitations: While Tri-Clamp Butterfly Valves are suitable for many applications, they may not be appropriate for high-pressure systems. In high-pressure environments, other types of valves may be needed.
Temperature limitations: Tri-Clamp Butterfly Valves made of certain materials may not be suitable for extreme temperature environments. It is important to choose the appropriate material to ensure that the valve operates effectively within the expected temperature range.
Limited flow adjustment: Although butterfly valves can quickly open and close, they may not be suitable for applications requiring precise flow adjustment.
Cost: Compared to other types of valves, Tri-Clamp Butterfly Valves can be expensive, especially when special materials or customized designs are required.
Installation accuracy requirements: To ensure optimal sealing performance, the Tri-Clamp connection system needs to be installed accurately. Improper installation can lead to leakage or other issues.
